Jetway 1U HBJC153I05 J6412 16GB 256 SSD 6 Port 2.5GbE. LAN Endüstriyel Firewall Pc

SYSTEM
MB FORM FACTOR	Mini-ITX
CPU	Onboard Intel® Celeron® Processor J6412 (Formerly Elkhart Lake, TDP 10W)
CHIPSET	Intel® SoC
MEMORY	1 x DDR4 3200MHz, Single Channel SO-DIMM, up to 32GB
BIOS	AMI Flash ROM
SECURITY	TPM2.0 (Optional)
OS SUPPORT	Windows® 11 (64bit) Windows® 10 (64bit) Linux
POWER
POWER REQUIREMENT	DC-in 12V
DISPLAY
GPU	Intel® HD Graphics
HDMI	1 x HDMI (Max Resolution: 1920 x 1080@60Hz)
LAN
ETHERNET	6 x RJ45 for Intel® I226-V 2.5GbE Optional 4 x RJ45 (LAN Card or ByPass LAN Card)
SYSTEM I/O
REAR PANEL I/O	AC input CON Power on/off SW
FRONT PANEL I/O	6 x LAN (MB) 4 x LAN (Expansion PCIE 4 x Lan Card) 1 x HDMI 1 x RS-232/422/485 1 x RS-232 1 x USB 3.1 1 x USB 2.0 1 x Power LED, 1 x Alarm LED 1 x GPIO
STORAGE
SATA	1 x 2.5” SATA Device (support 2.5” HDD with a height ≤ 10mm)
eMMC	Onboard 64GB eMMC 5.1 (optional)
EXPANSION
M.2	1 x M-key 2242 (SATA/PCIe Gen.3 x2 interface) support NVMe 1 x E-Key 2230 (USB 2.0/PCIe 3.0 x1) 1 x B-key 3042 (USB3.1 interface)
SIM	1 x SIM Card Slot
MECHANICAL
DIMENSIONS (W x D x H)	430.0 (W) x 252.0 (D) x 44.0 (H) mm
ENVIRONMENT & CERTIFICATION
SHOCK	15G, 11ms duration
VIBRATION	1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE	0°C ~ 50°C (32°F ~ 122°F)
STORAGE TEMPERATURE	-40°C ~ 85°C (-40°F ~ 185°F)
OPERATING HUMIDITY	10 ~ 95% @ 40°C, Non-condensing
CERTIFICATION	CE/FCC Class A
ESG DECLARATION	EU RoHS China RoHS ErP

Jetway 1U HBJC153I05 J6412 16GB 256 SSD 6 Port 2.5GbE. LAN Endüstriyel Firewall Pc

1 Mağaza Fiyatı

Fiyat Geçmişi

Benzer Ürünler

HXH Fan DC Brushless 40x40x10mm, 12V - 0.08A, Model HDB0412MG-F

Jetway 1U Q670B i5 12400 8GB 256GB M2SSD 8 Port Endüstriyel Firewall Pc

Jetway 1U Q670B i5 12400 32GB 1TB M2SSD 8 Port Endüstriyel Firewall Pc

MSI 120mm 12X12 RGB Kasa Fanı

TGC AMD AM5 Soket 1U Pasif Soğutucu 120W

3.84TB 4XB7A74955 THINKSYSTEM DE SERIES 1DWD 2.5in SSD 2U24

SRV PER760P1 R760XS SILVER 4410Y 1x16G 1x480GB SSD CHASSIS 8X2.5/RAILS/BEZEL/NO NIC/FRONT PERC H755 WITH FRONT LOAD/iDRAC9 ENTERPRISE 16G/DUAL 700W

P40498-B21 960GB SATA RI SFF BC MV SSD

Kingston KCP556UD8-32 32GB DDR5 5600Mhz Non ECC

P40497-B21 480GB SATA RI SFF BC 2.5'' SSD

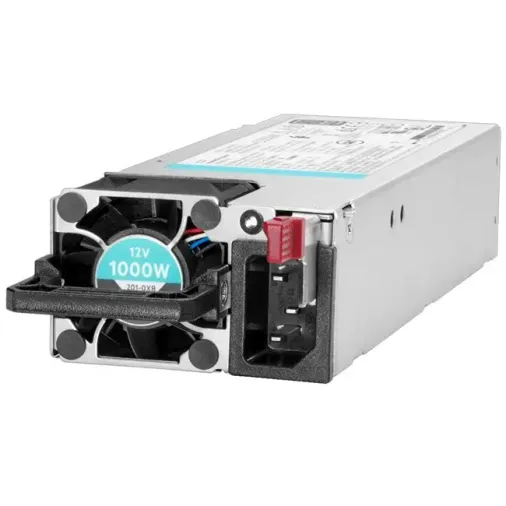

1000W Titanium Hot Plug Power Supply (P03178)
