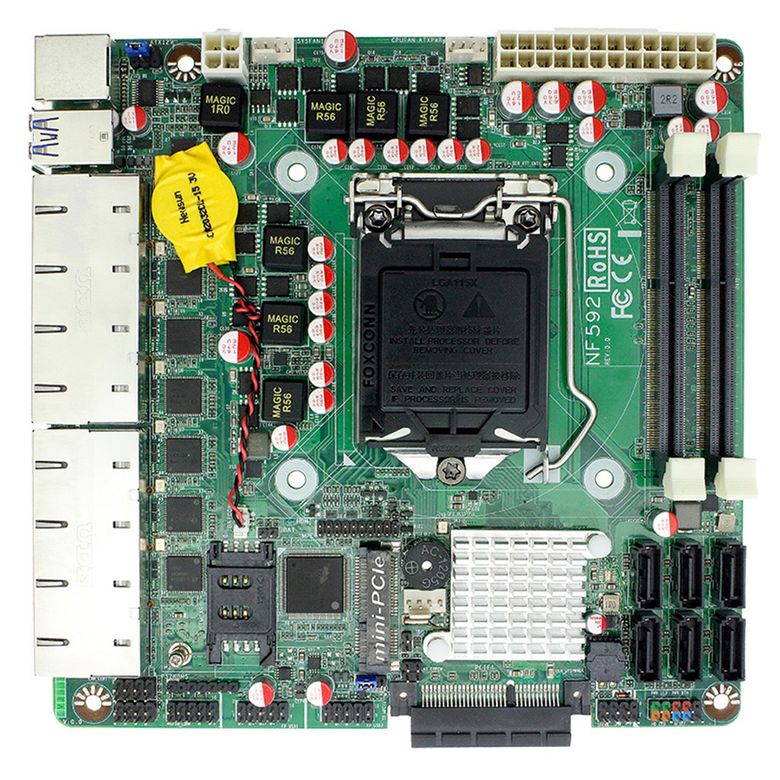

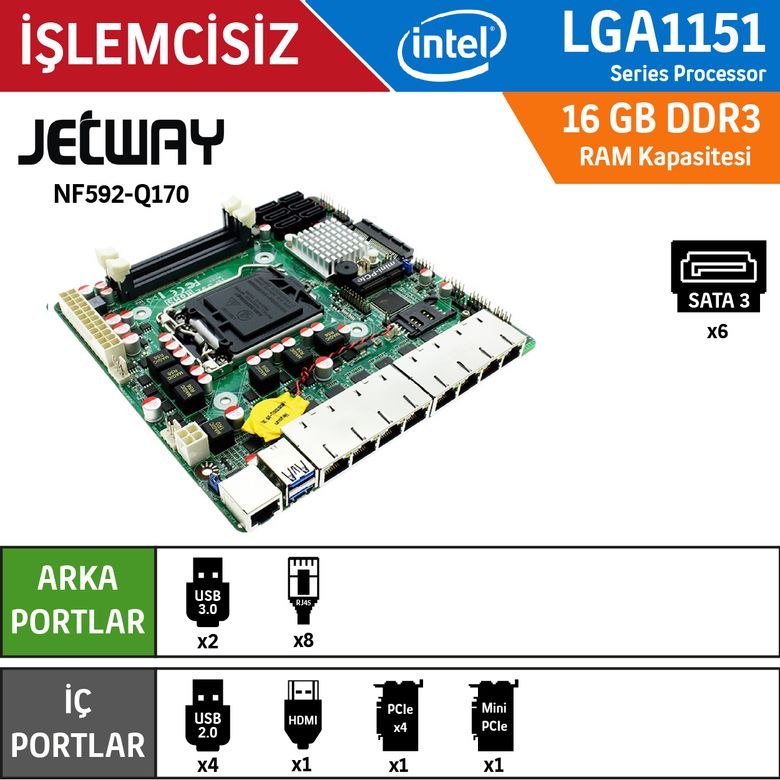

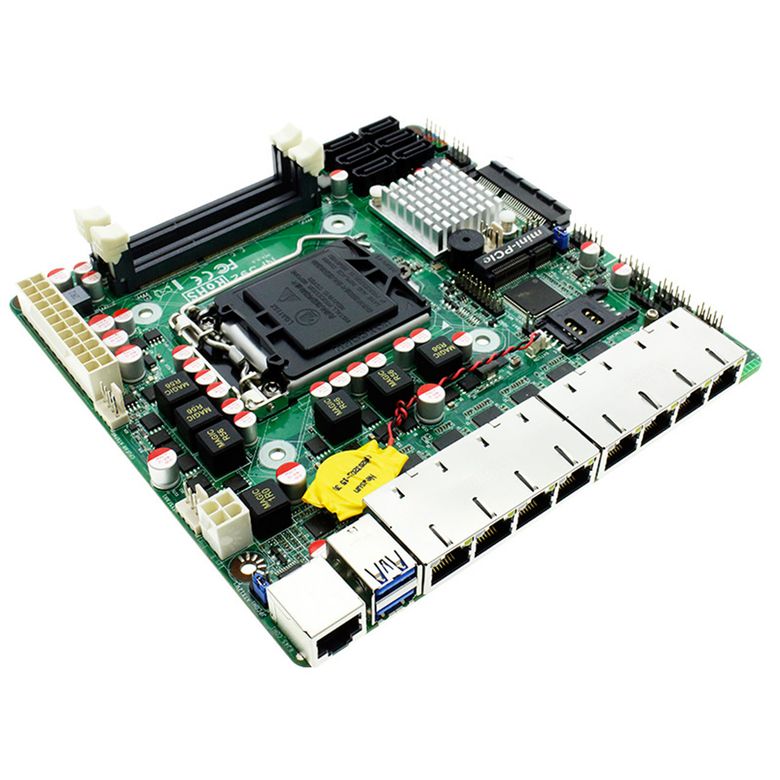

Jetway NF592-Q170 Intel 1151 Pin Endüstriyel Mini ITX Anakart

Form Factor

Dimensions

– Slim Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)

 Processor System

CPU

– Intel® LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor
– Supports Hyper-Threading Technology

Core Number

– (By CPU)

Max Speed

– (By CPU)

L2 Cache

– ( By CPU)

Chipset

– Intel Q170 Express chipset

BIOS

– AMI 128Mb SMT Flash ROM

 Expansion Slot

mSATA

– 0

PCIe

– 1 * x4 side-slot (4 * PCIex1 combo signal)

Mini-PCIe

– 1 (full size)

SIM slot

– 1

 Memory

Technology

– Dual Channel DDR3L 1600MHz SDRAM

Max.

– 16GB

Socket

– 2 x SO-DIMM

 Graphics

Controller

– Intel® Gen9 Graphics supports DX 11/12, OGL4.3/4.4

VRAM

– Shared Memory

VGA

– 0

LVDS

– 0

HDMI

– 1* (Internal) HDMI supports up to 4096×2160@24Hz

MultiDisplay

– No

 Ethernet

Ethernet

– 10/100/1000 Mbps

Controller

– Intel i211AT * 7 & i219LM * 1 GbE

Connector

– 8 x RJ45

 SATA

Max Data Transfer Rate

– 6 x SATAIII (6.0Gb/s)

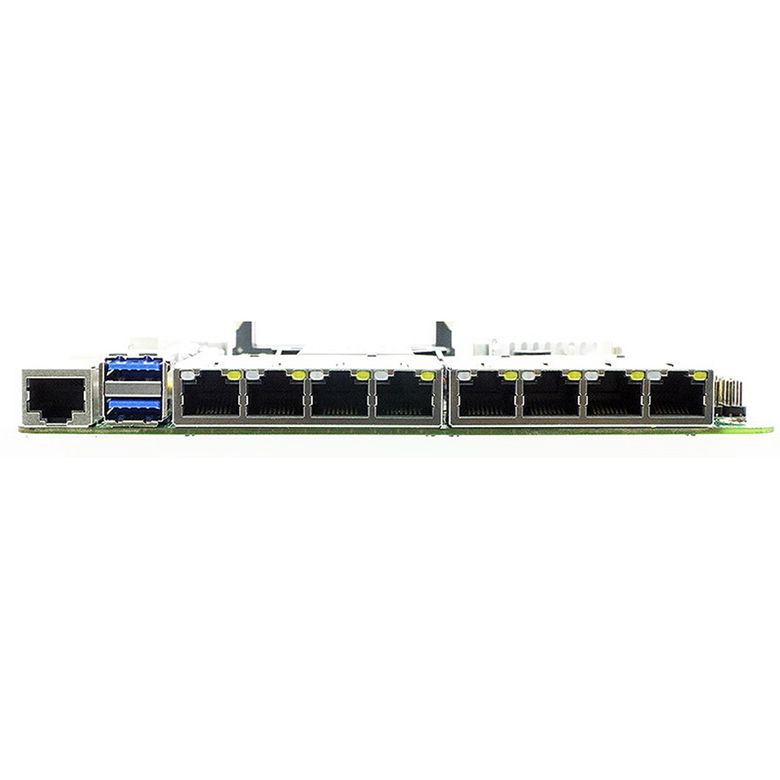

 Rear I/O

VGA

– 0

HDMI

– 0

Ethernet

– 8

USB

– 2 x USB 3.0

Serial

– 1 x RS232 (RJ45 type)

DC-input

– 0

 Internal Connector

USB

– 4 x USB 2.0

LVDS / inverter

– 0

HDMI

– 1

SATA

– 6

mPCIe

– 1

mSATA

– 0

Chassis intrusion

– 1

PS/2

– 1

Audio Header

– 0

 Watchdog Timer

Output

– From Super I/O to drag RESETCON#

Interval

– 256 segments, 0,1,2…255sec/min

 Power Requirements

Input PWR

– ATX PWR (4+24 pin)

Power On

AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready

Certifications

Certifications

– CE, FCC, RoHS, REACH

 Environment

Temperature

– Operating: 0°C – 60°C

– Storage: -20°C – 85°C
